STANDARD EQUIPMENT:
• 3-point linkage cat. III

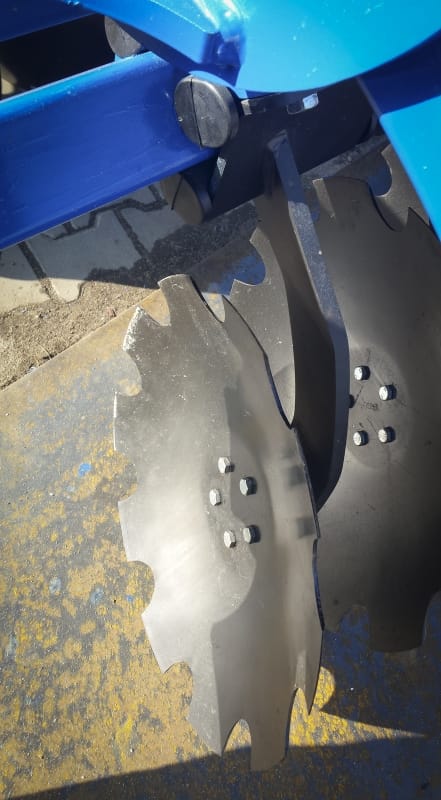

• 2 rows of notched discs Ø 560 mm , space between rows 100 cm
• Mechanical adjustment of working depth
• Side discs Ø 510 mm
• Discs rubber protection Ø 50 mm
• Tubular roller Ø 500 mm

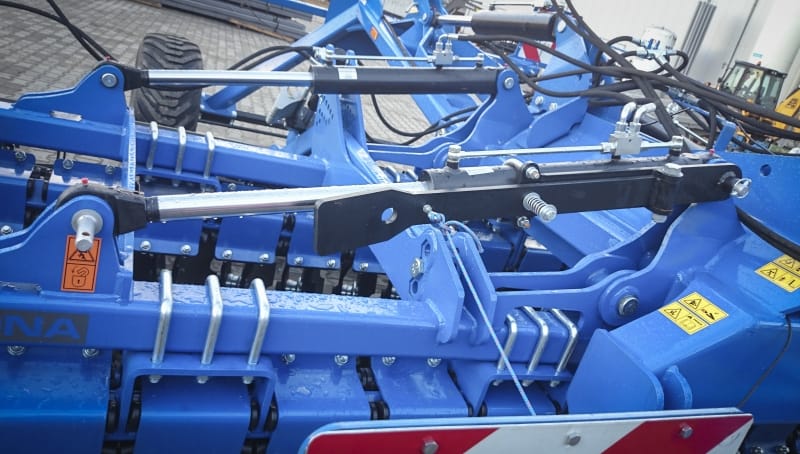

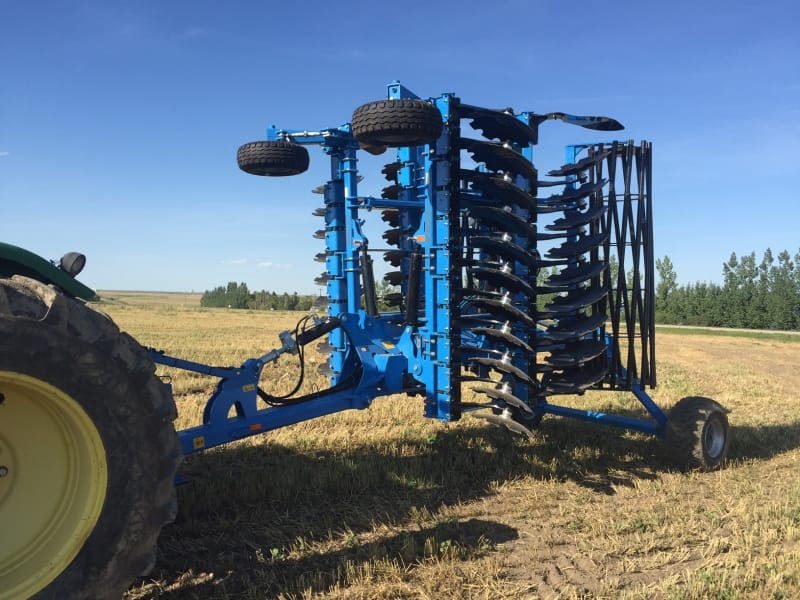

• Hydraulic folding to the transport position

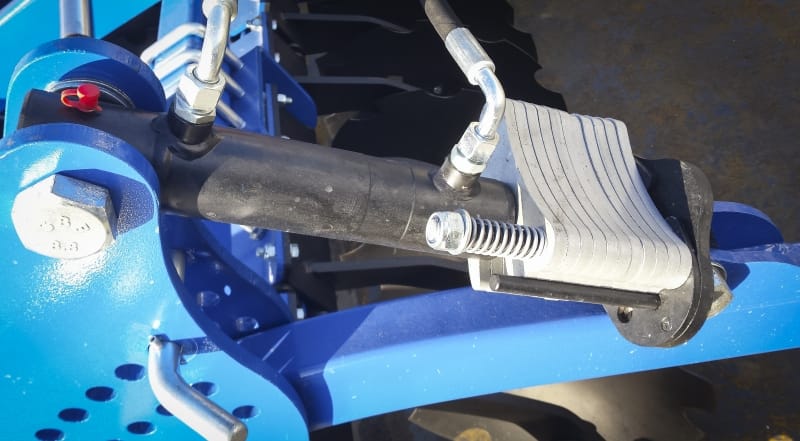

• Mechanical safety blockade of wings (turnbuckle)
• Arms made of certificated steel with maintenance-free hubs
• Side screens with height adjustment
• Transport width less than 3.0 m
OPTIONAL EQUIPMENT:
• 2 rows of notched discs Ø 610 mm, space between rows 100 cm, outermost discs Ø 560 mm, tubular roller Ø 600 mm
• Hydraulic adjustment of working depth
• Row of harrow springs mounted at the front of roller
• Tubular roller Ø 600 mm for disc Ø 560 mm
• Packer roller Ø 500 mm
• Packer roller Ø 600 mm
• V-ring roller Ø 500 mm with scrapers
• V-ring roller Ø 600 mm with scrapers
• FLEX roller Ø 500 mm
• FLEX roller Ø 550 mm
• Rubber roller Ø 500 mm
• T-ring roller Ø 500 mm
• T-ring roller Ø 600 mm
• Flat bar roller Ø 500 mm
• Flat bar roller Ø 600 mm
• Toothed flat bar roller Ø 500 mm
• Toothed flat bar roller Ø 600 mm
• FUSION roller Ø 600 mm
• Tandem roller (tubular Ø 500 mm; flat bar Ø 300 mm)
• Reinforced, welded arms with lubricated hubs (on request)
• Maintenance-free SKF hubs
• Mechanical semi-automatic safety blockade of the side wings

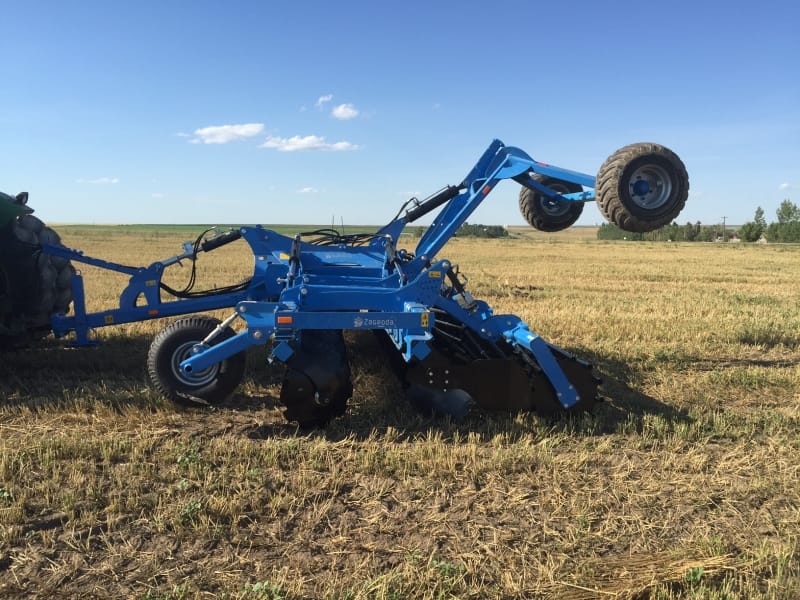

•Trailed version: transport chassis with wheels 400-60-15.5 and hydraulic height adjustment with mechanical safety blockade of unfolding; drawbar with hitch cross shaft cat. III, two front wheels 10.0/80/-12
• Hydraulic brakes
• Two circuit pneumatic brakes
• Hydraulic adjustment of drawbar height
• Wheel chocks
• Warning plates with LED lights
